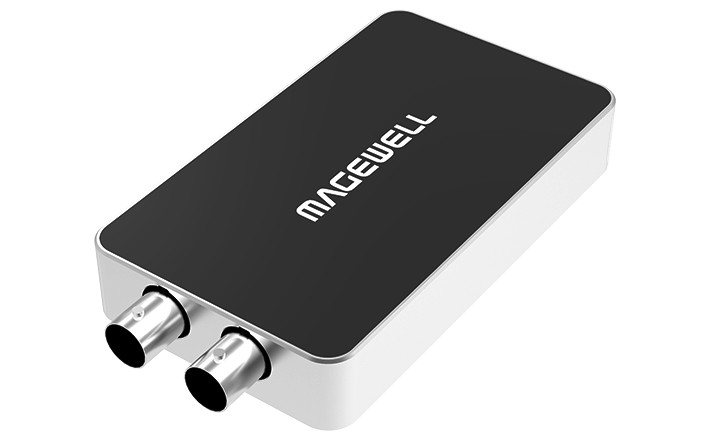

Placa de captura Magewell USB Capture SDI Plus
2.132,00 lei

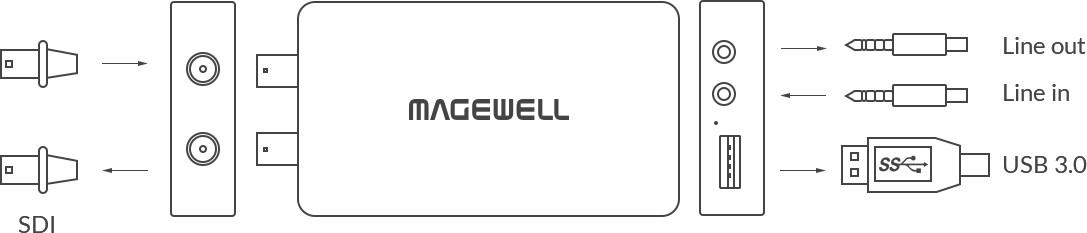

Magewell USB Capture SDI Plus, placa de captura prin SD / HD / 3G / 2K SDI + audio embedded
- Loop-through SD / HD / 3G / 2K SDI
- Intrare audio prin Line in
- Extrageți audio și ieșire SDI încorporate prin Line out
Magewell USB Capture SDI Plus, placa de captura prin SD / HD / 3G / 2K SDI + audio embedded
- Loop-through SD / HD / 3G / 2K SDI
- Intrare audio prin Line in
- Extrageți audio și ieșire SDI încorporate prin Line out

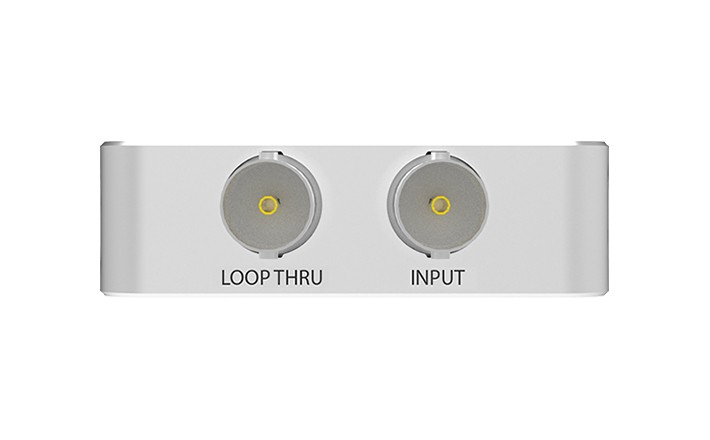

Interfață de intrare
- SD / HD / 3G / 2K SDI x1
- Suportă rezoluție de intrare de până la 2048 × 1080 pixeli
Interfață Loop-through
- SD / HD / 3G / 2K SDI x1
- Suportă rezoluție loop-through de până la 2048 × 1080 pixeli

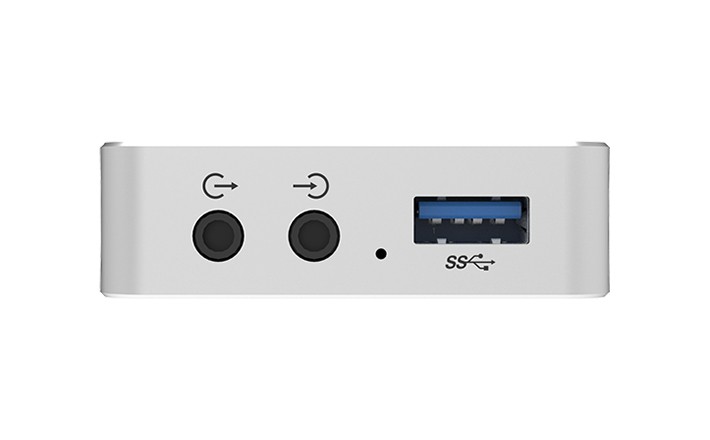

Interfață de intrare audio
- Mufă audio de 3,5 mm pentru Line In
Interfață de ieșire audio
- Mufă audio de 3,5 mm pentru Line Out
USB 3.0
Video Engine
- 8-bit video processing
- Deinterlace
- Cropping
- Color Adjustment
- Color Space Conversion
- Up/down Conversion
- Aspect Ratio Conversion
- Mirror and Flip
Detectarea automată a formatului semnalului de intrare
Caracteristici specifice SDI
- pana la 330m for SD-SDI signals
- pana la 190m for HD-SDI signals
- pana la 150m for 3G-SDI signals
- Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
- Support for 2K (2048×1080) mode
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for 10/12-bit color depth
- Support for extraction of SMPTE 352 payload identifier
- Support for up to 2 (mono) audio channels at 48KHz
- Support for extraction of audio formation information & channel status data
- Limited support of 3Gb-DS: only the first stream can be captured
- Limited support for capture of the first link of dual link interfaces:
- YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
- YCbCr 4:4:4 10-bit: captured as 4:2:2
- RGB 4:4:4: R/B sub-sampled
