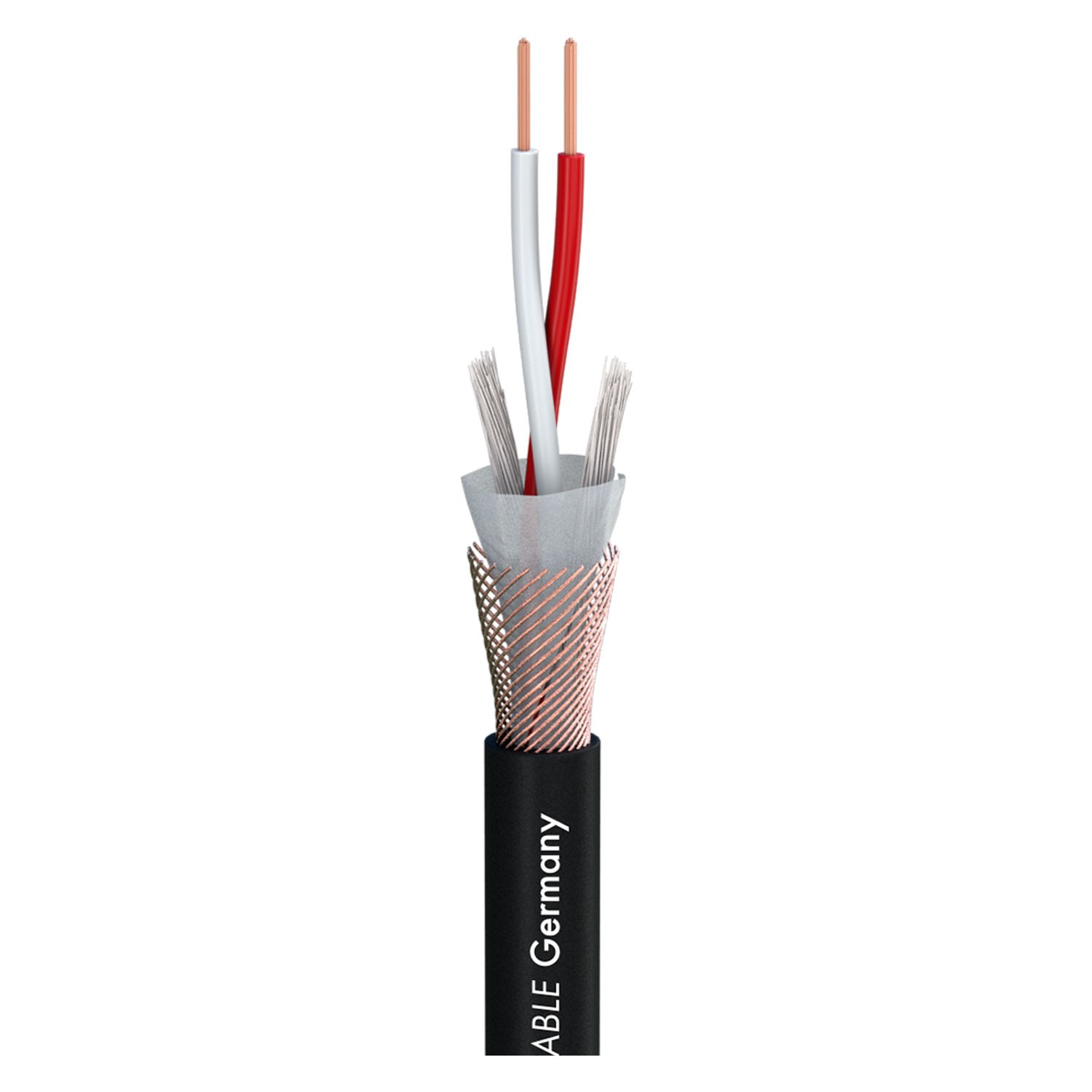

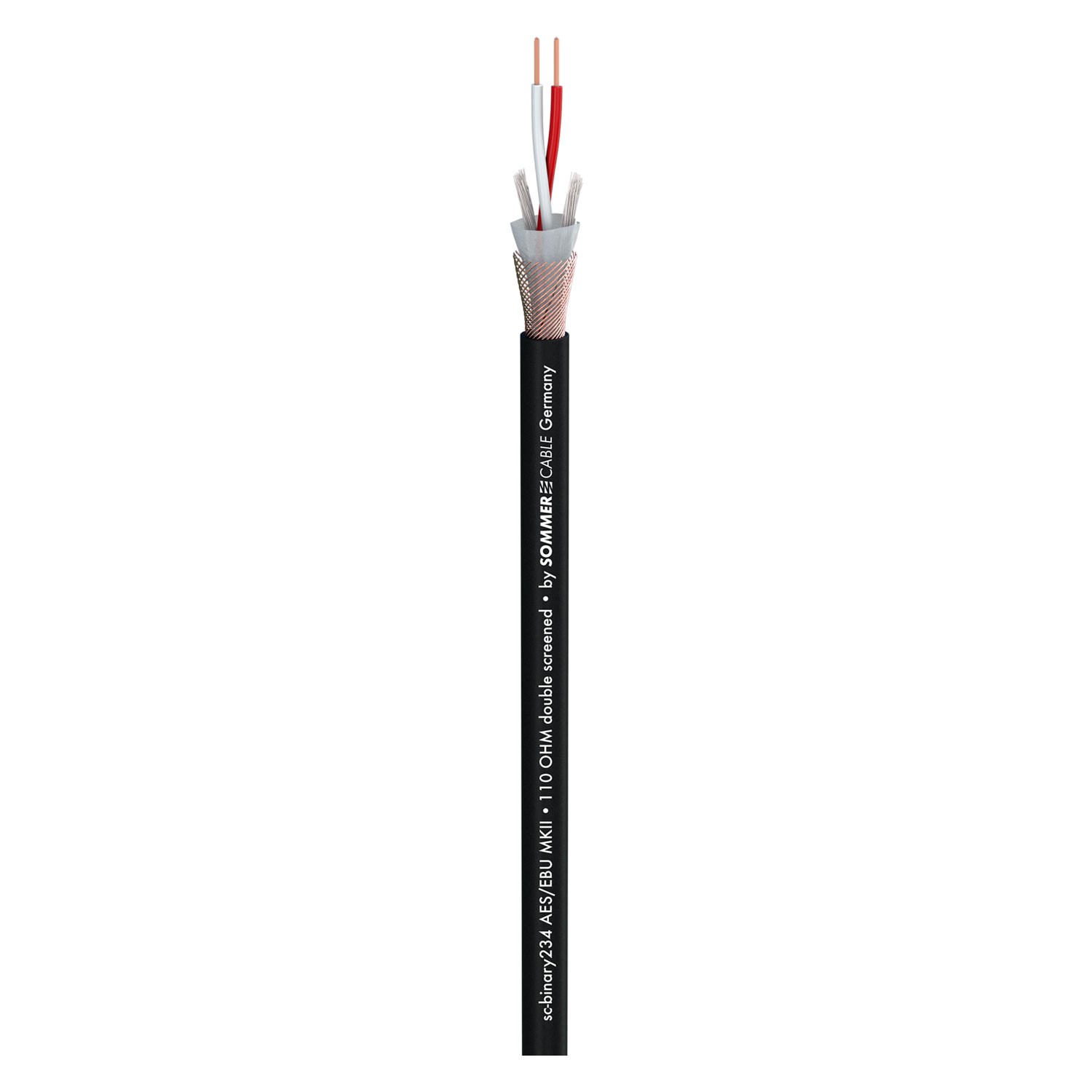

Binary 234 AES/EBU MKII
9,24 lei
The Binary 234 AES/EBU MKII is an outstanding cable for the transmission of digital signals in the 110Ω AES/EBI and DMX data format. This cable ensures an error-free data transfer over distances of up to 1000 meters.
-Digital cable 2 x 0,34 mm²; PVC Ø 6,20mm; black
Advantages:
– AES/EBU- and DMX-conformant, highly flexible
– Very good shielding due to the use of a helical copper mesh screen plus
an aluminium-vaporised fleece
– Extremely rugged due to the special tough jacket
– Only a little more expensive than a standard microphone cable
Application:
– Networking of scanners, lighting systems, digital mixing consoles etc.
– For indoor and outdoor installation
– Connection of digital audio amplifiers, DAT recorders etc.
Technical Data:
– Properties: Analog
– Properties: Digital 110 Ω AES / EBU
– Properties: OFC oxygen free copper
– Application area: ELA 100 V
– Application area: Studio / Broadcast
– Application area: Mobile outdoor / indoor
– Application area: Installation
– Application area: Stage / live
– Application: DMX
– Colour: black
– Colour detailed: black
– Signal transmission: symmetrical
– Jacket material: PVC
– Jacket Ø: 6,2 mm
– Number of Channels (AES/EBU, DMX): 1
– Inner conductor (AES/EBU, DMX): 2
– Inner conductor (AES/EBU, DMX): 0,34 mm²
– Inner conductor Ø (AES/EBU, DMX): 0,66 mm
– AWG (AES/EBU, DMX): 22

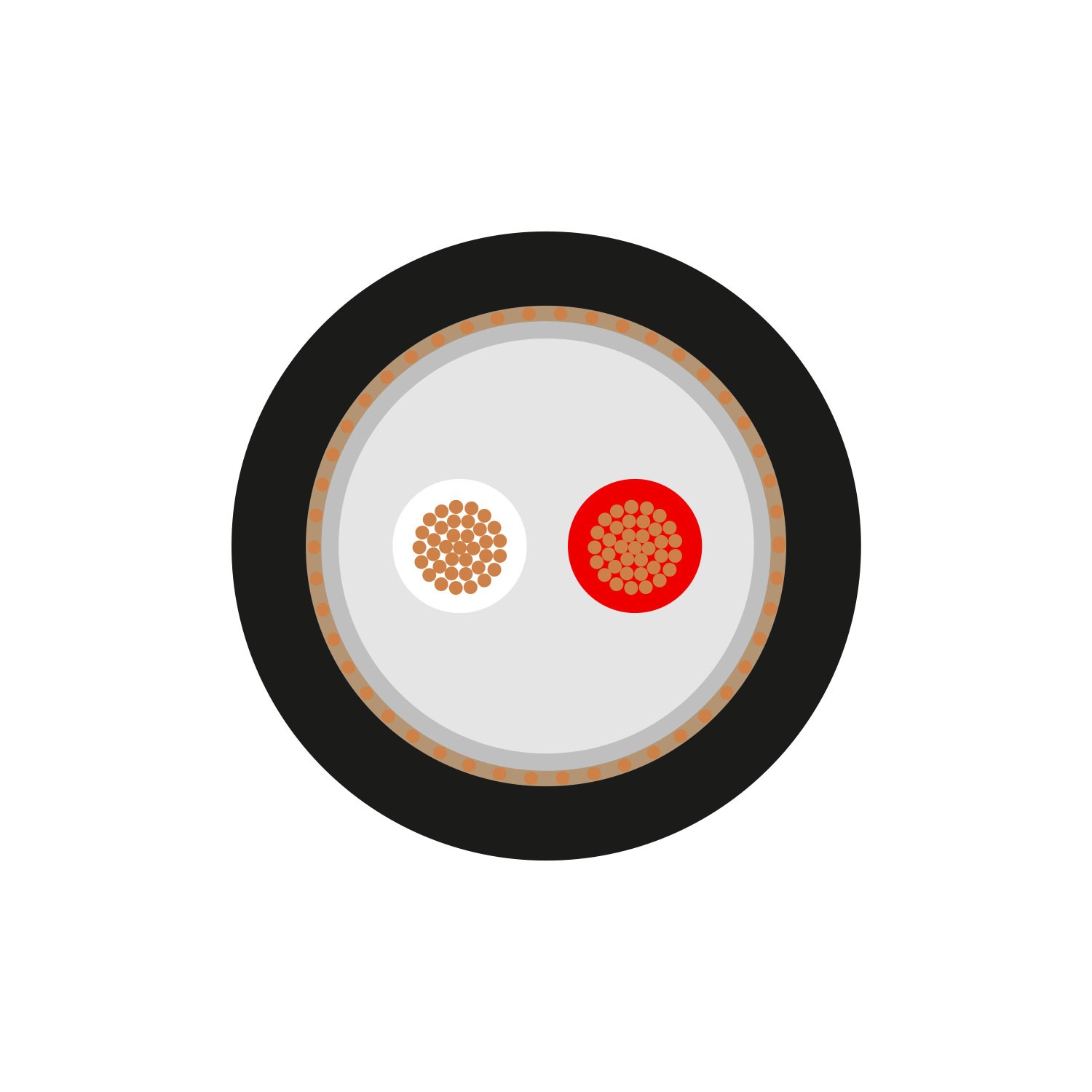

– Shielding: Copper spiral shielding + aluminum steamed fleece
– Copper strands (AES/EBU, DMX): 19
– Copper strand Ø (AES/EBU, DMX): 0,15 mm
– Conductor insulation material: Foam / Skin-PE
– Conductor insulation Ø: 1,5 mm
– Weight per 1 m: 50 g
– UV-resistant: yes
– Fire load per m: 0,17 kWh
– Style variant: round
– Shielding factor: 100 %
– Packing: 100 m spool
– Temperature min.: -25 °C
– Temperature max.: 70 °C
– Width: 6,2 mm
– Height: 6,2 mm
– Capac. cond./cond. per 1 m (AES/EBU, DMX): 63 pF
– Capac. cond./shield. per 1 m (AES/EBU, DMX): 115 pF
– Impedance: 110 Ω
– Insulation resist. per 1 km: 1 GΩ
– Insulation resist. per 1 km (AES/EBU, DMX): 1 GΩ
– Conductor resistance per 1 km: 53 Ω
– Shield. resistance per 1 km: 28 Ω
– BPVo-Euroclass: Fca
